PRESENTING OUR NEW DIRT 2-SPEED:
Jerico® Performance Products is proud to release the new
Dirt 2-Speed transmission to add to the family of drag and road
racing transmission. We have integrated over 40 years of knowledge,
quality control and machining to this American made high performance
transmission and have developed a Jerico® 2-speed dirt transmission.
The dirt 2-speed shares the same quality of materials and
attention to details as all our products. With an in-house test
car as constant feedback, we have developed new innovations
for the Jerico® dirt 2-speed.
We stand by all our transmissions and are proud of the longevity
and durability of our high-performance transmissions and are
pleased for the Jerico® dirt 2-speed to join the ever-growing
dirt racing community.
For more information or to purchase please call Jerico®
at 704-782-4343.
We would like to thank our R&D Dirt Team; Mike Harrison
Racing, Cook Motorsports, Josh Carroll, Kenny Shaw and Ayers
Racing for their help in developing this high quality, American
made dirt transmission.

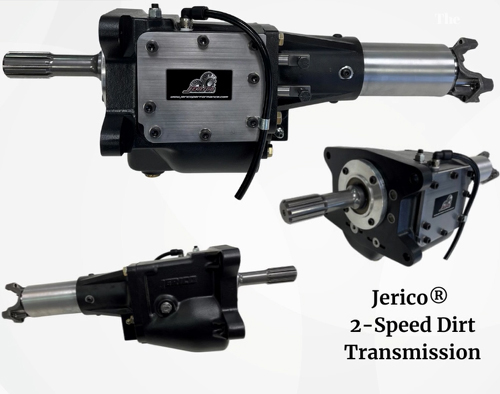

Jerico® Performance Products Extended
Glide 2-Speed Dirt Transmission
Comes standard with:
* 100% American Made.
* Heat Treated and precision ground - Internal Yoke that extends
a full 5 3/4"
* Thermal dispersant and corrosion preventative coating.
* Internal Carbon Fiber Clutches
* Revolutionary Billet 1-piece CNC machined Clutch Drum
* Custom designed 1-piece, 10-spline input with removable dog.
* REM finished internals
* All internal components heat treated to Jerico® specification
for strength & durability
* Weight: 49 LBS
* Length: 17 1/2" from face to the tail
* Designed for easy assembly & service
* 2 Lever Shifting System
* ONLY use Jerico® recommended specialty formulated oil
-or- Schaeffer's XP Extreme Performance V-Twin Lube Primary
Synthetic Plus.
Jerico® Performance Products 2-Speed
Dirt Transmission
Comes standard with:
* 100% American Made.
* Internal Carbon Fiber Clutches
* Revolutionary Billet 1-piece CNC machined Clutch Drum
* Custom designed 1-piece, 10-spline input with removable dog.
* REM finished internals
* All internal components heat treated to Jerico® specification
for strength & durability
* Weight: 42 LBS
* Length: 17 1/2" from face to the tail
* Designed for easy assembly & service
* 2 Lever Shifting System
* Will accept 10" yoke
* ONLY use Jerico® recommended specialty formulated oil
-or- Schaeffer's XP Extreme Performance V-Twin Lube Primary
Synthetic Plus.
Click
Here for 2 Speed Dirt Transmission Assembly
Click
Here for Case Assembly
Click
Here for Counter Shaft Assembly
Click
Here for Main Shaft - Input Assembly
Click
Here for Reverse Counter Shaft Assembly
Click
Here for Extended Glide Assembly
Click
Here for Shift Assembly
Click
Here for Slip Yoke Assembly
Click
Here for Tailshaft Assembly
